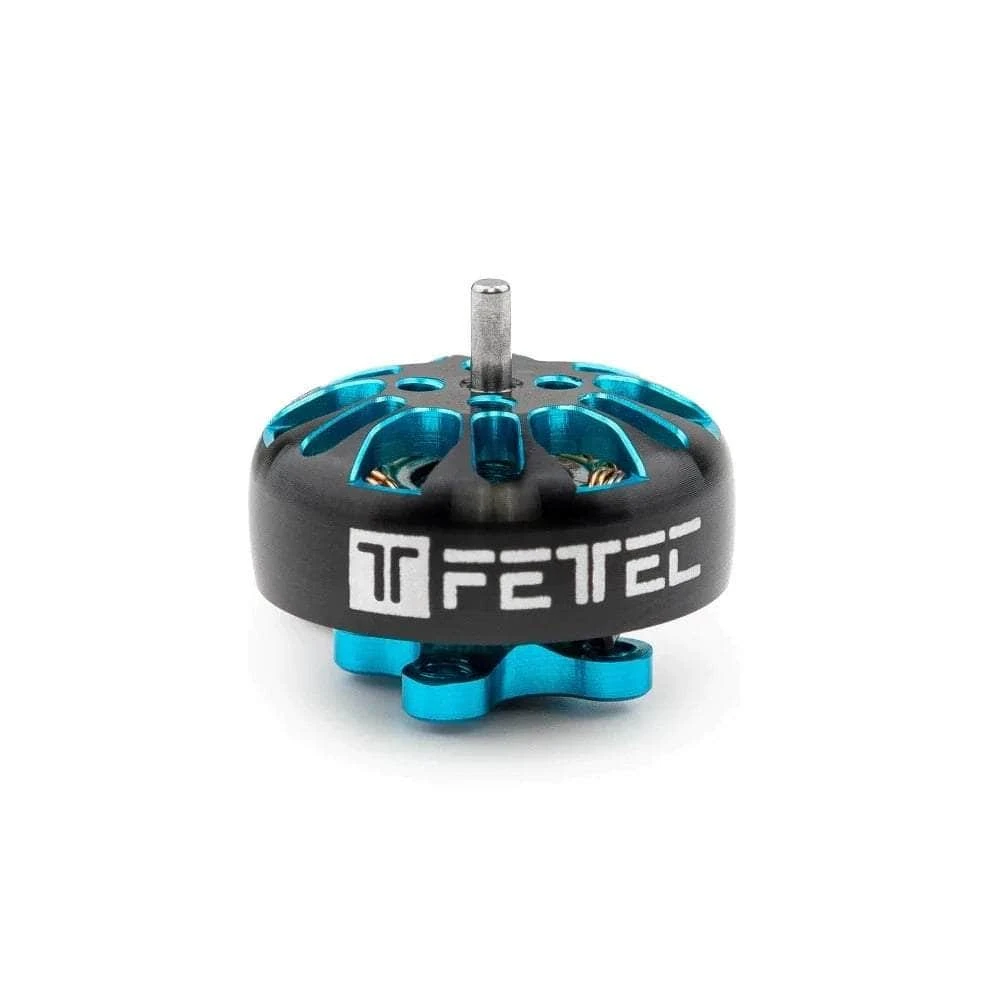

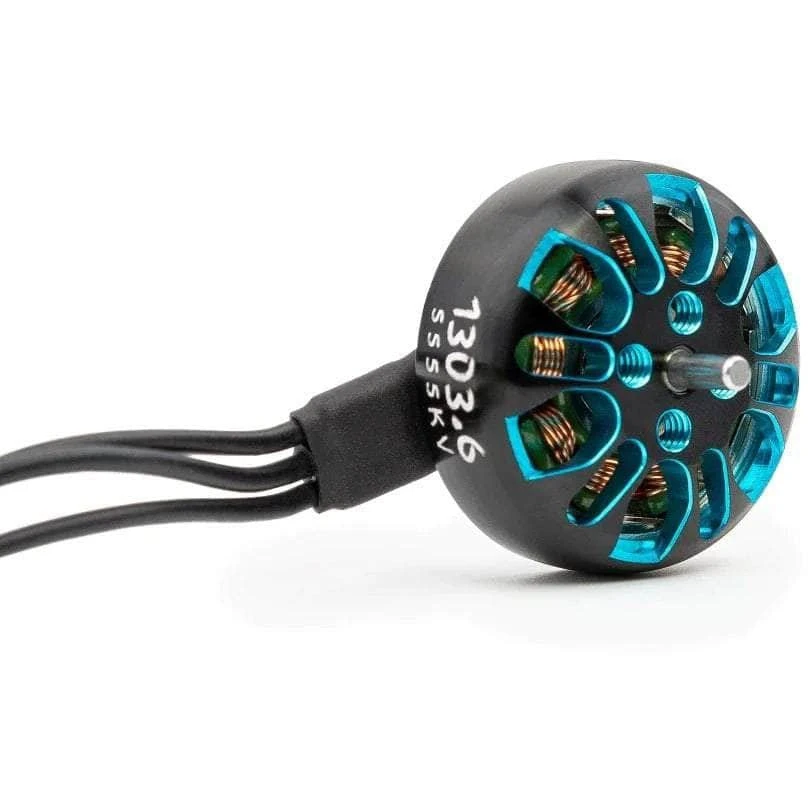

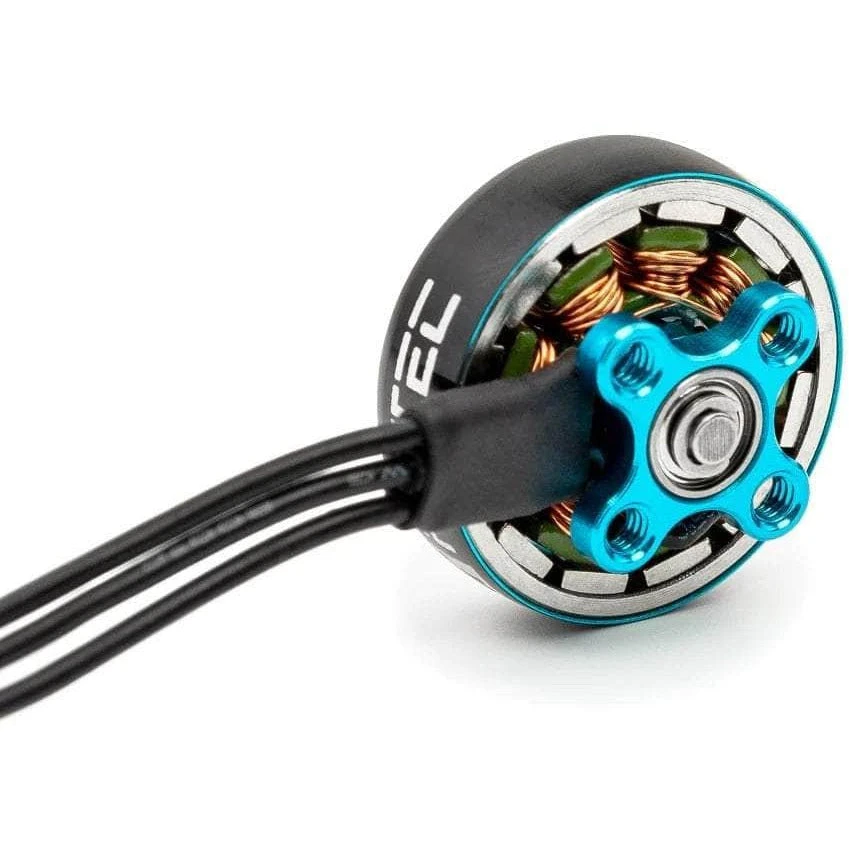

FETtec 1303.6 5555Kv Micro Motor

The FETtec 1303.6 5555Kv Micro Motor provides superior torque and power for its size, allowing for full control of your quadcopter or multirotor. It boasts a 5555Kv rating and FETtec’s reliable design, yielding efficient and smooth flights for all levels of pilots.

Check out

our micro motors

 and all of our

FETtec

 products!

Specifications

• KV: 5555
• Configuration: 9N12P
• Stator Diameter: 13mm
• Stator Length: 3.6mm
• Shaft Diameter: 1.5mm(2mm inside)
• Motor Dimension(Dia.*Len):  Φ 17.6*10.8mm
• Weight(g): 6.4
• Idle current(10)@10V(A): 1
• No.of Cells(Lipo): 2-4S
• Max Continuous Power(W): 96
• Internal Resistance: 130mΩ
• Max Current(3S): 8.6A
• Max.Effciency Current: (1.5-2A)>82%

Includes

• 1x FETtec 1303.6 5555Kv Micro Motor
