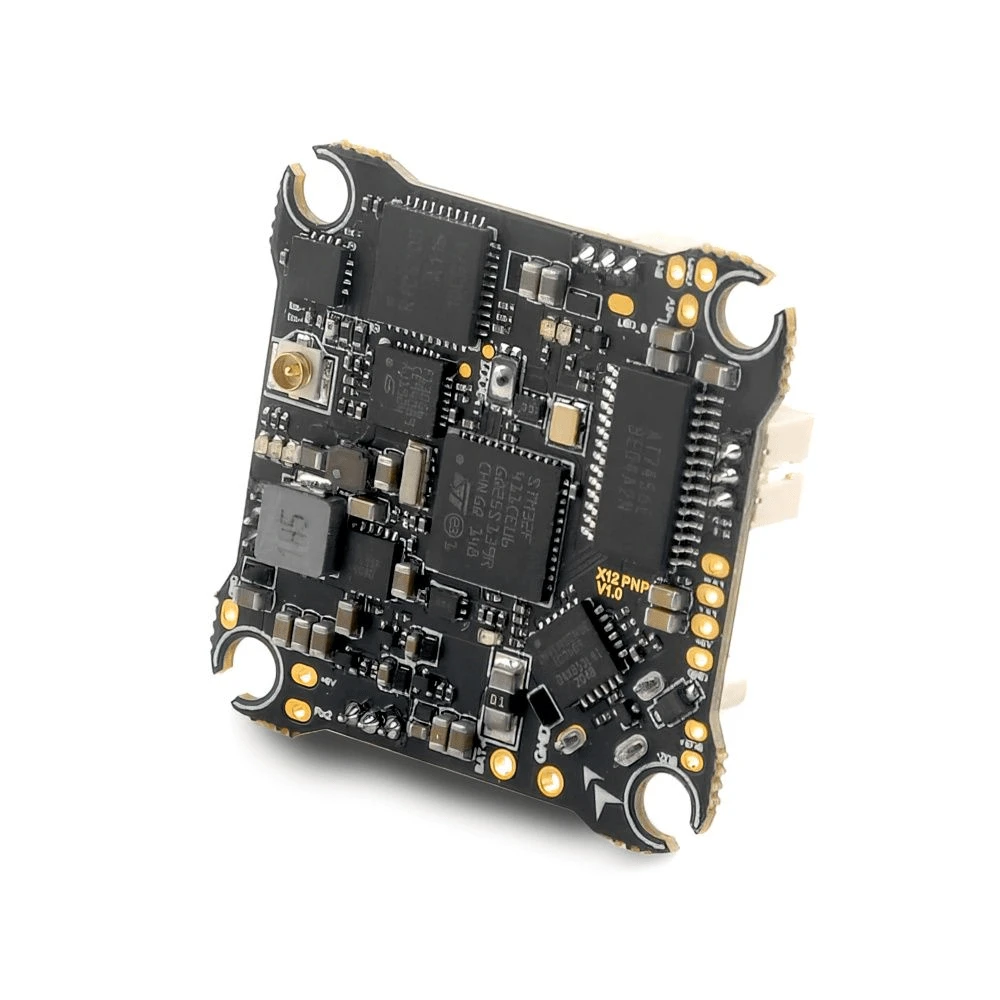

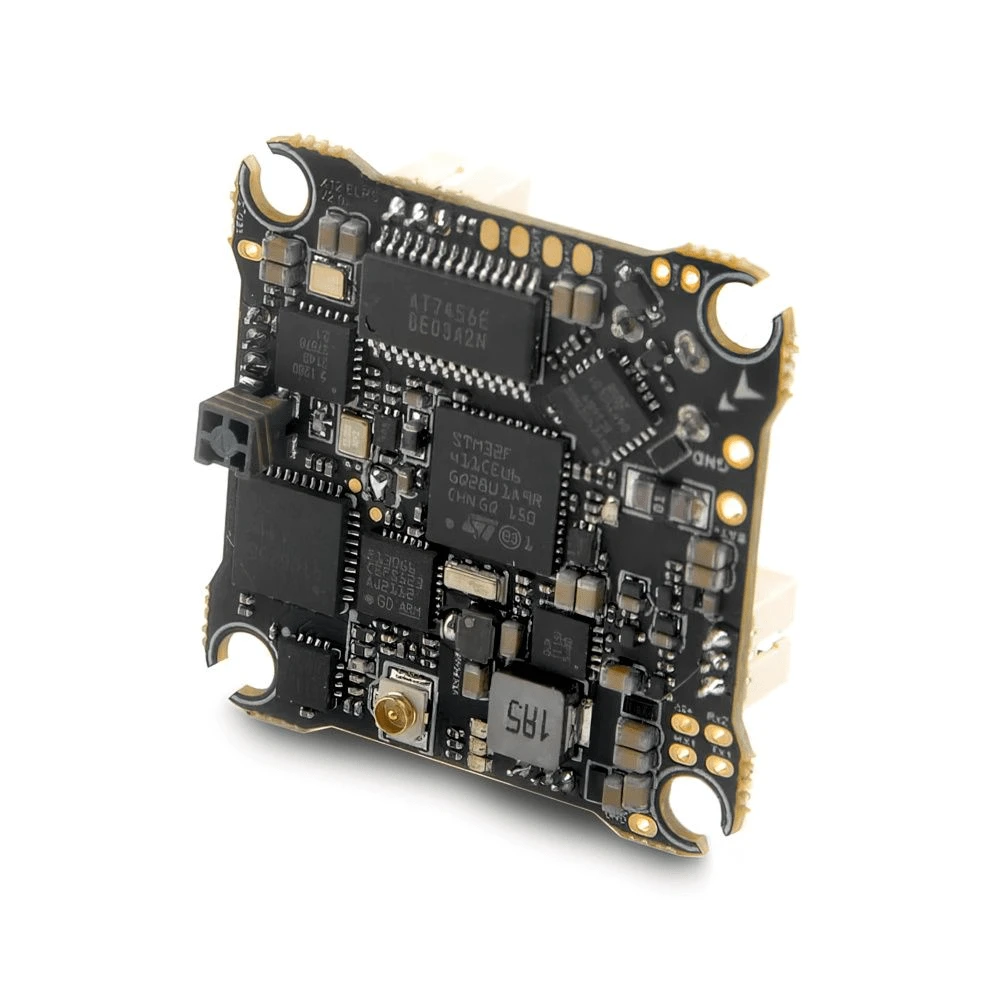

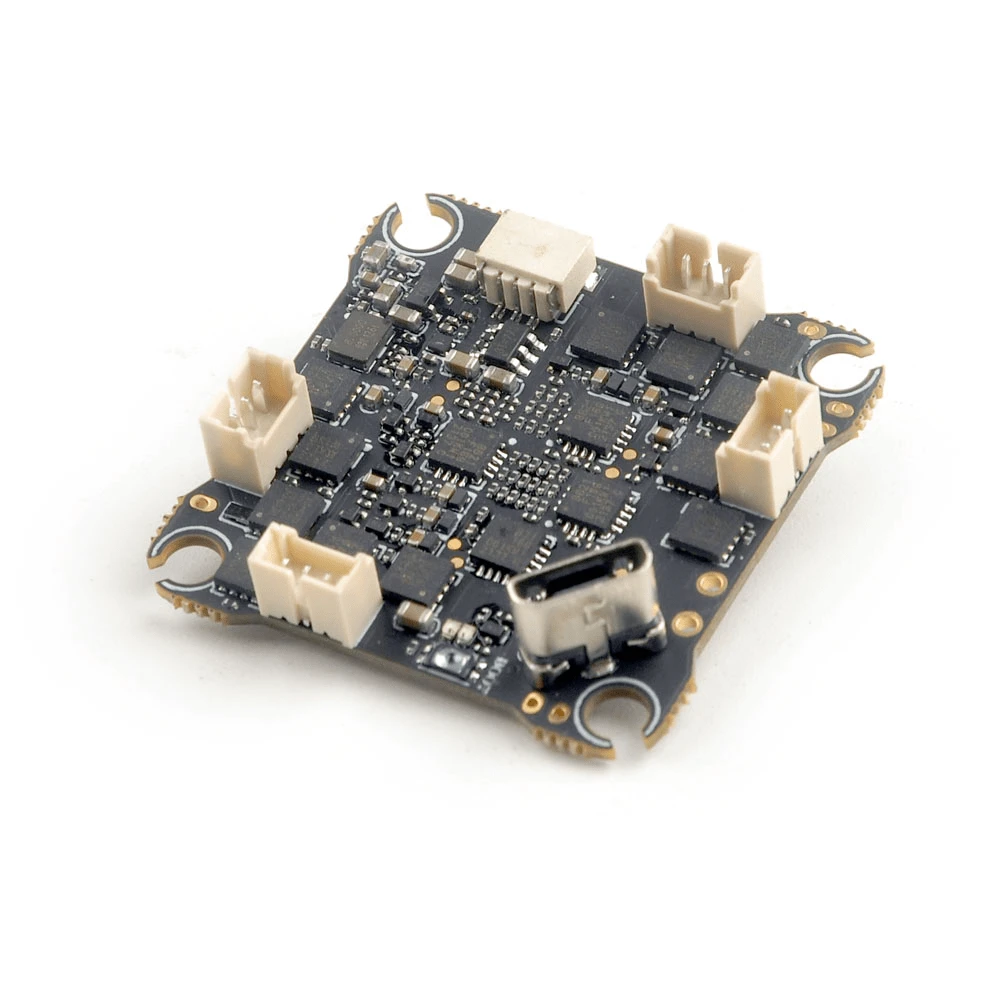

HappyModel X12 2S AIO Whoop Flight Controller (F4 FC / 12A 4in1 ESC / 25-400mW VTX) – Choose Version

The HappyModel X12 2S AIO Whoop Flight Controller (F4 FC / 12A 4in1 ESC / 25-400mW VTX) AIO board featuring an F4 Flight Controller, onboard 12A 4-in-1 ESC, 5.8GHz OpenVTX and built-in receiver of your choice! Happymodel continues to impress with yet another fantastic AIO for whoop applications!

Browse the rest of our

Whoop AIO boards

 and all our

Happymodel products

!

Specifications

• Input Voltage: 1-2S
• MCU: STM32F411CEU6 (100MHZ, 512K FLASH)
• Gyro: MPU6000 or ICM20689 or BMI270
• Max Continuous Current: 12A
• VTX Output Power: 25-400mW
• Antenna Connector: U.FL
• OSD: Yes
• Betaflight Target: ELRS Version: CRAZYBEEF4SX1280, PNP Version: CRAZYBEEF4DX
• ESC Firmware: Z_H_30_REV16_7
• Mounting Pattern: 25x25mm
• Weight: 5.1g

ELRS Version

• Packet Rate: 50Hz/150Hz/250Hz/500Hz
• ELRS Firmware Version: V2.0
• RF Frequency: 2.4GHz
• Antenna: SMD antenna
• Telemetry output Power: <12dBm

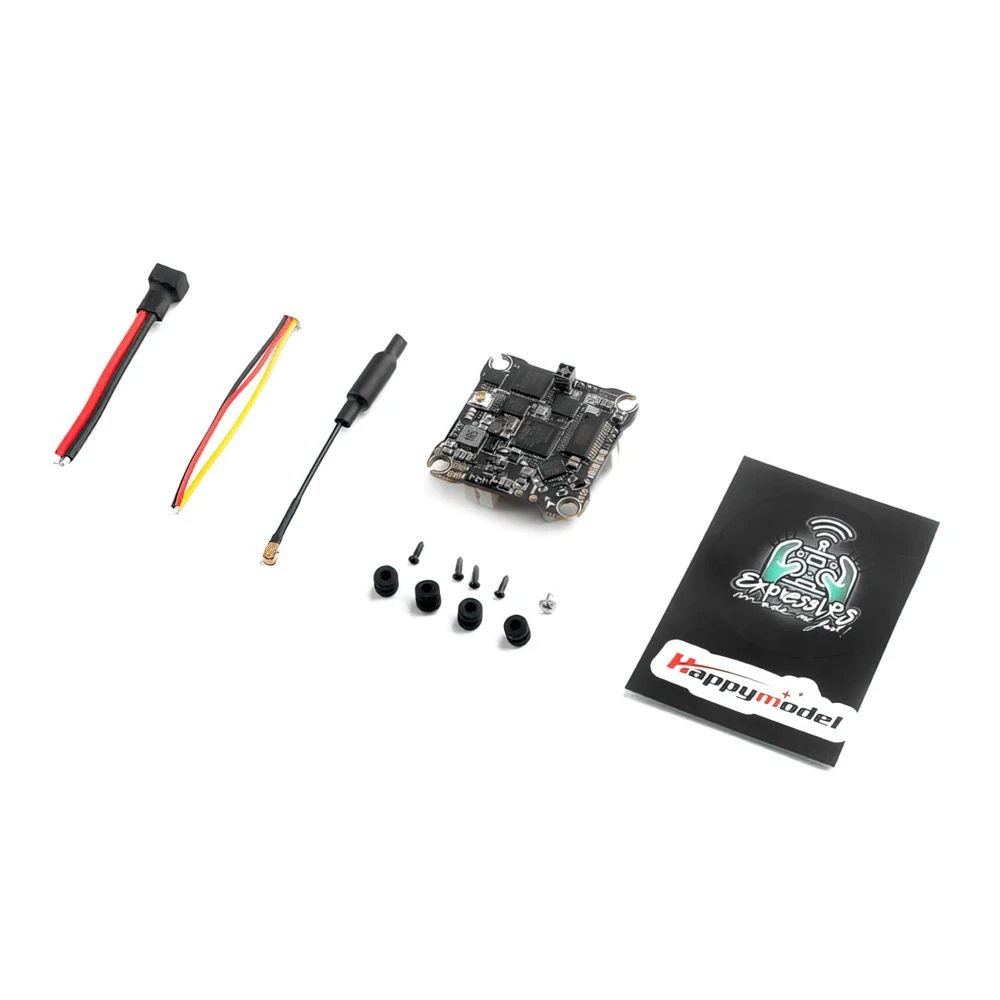

Includes

• 1x HappyModel X12 2S AIO Whoop Flight Controller (F4 FC / 12A 4in1 ESC / 25-400mW VTX)
• 1x Connecting Wires Set
• 1x Hardware Set
• 1x Antenna
